Technical data and equipment

Technical data

  • Perm. overall weight: 45,000 kg
  • Dead weight: approx. 12,900 kg
  • Payload: approx. 32,100 kg
  • Axle load: 24,000 kg
  • Chassis: 12 t drum brakes

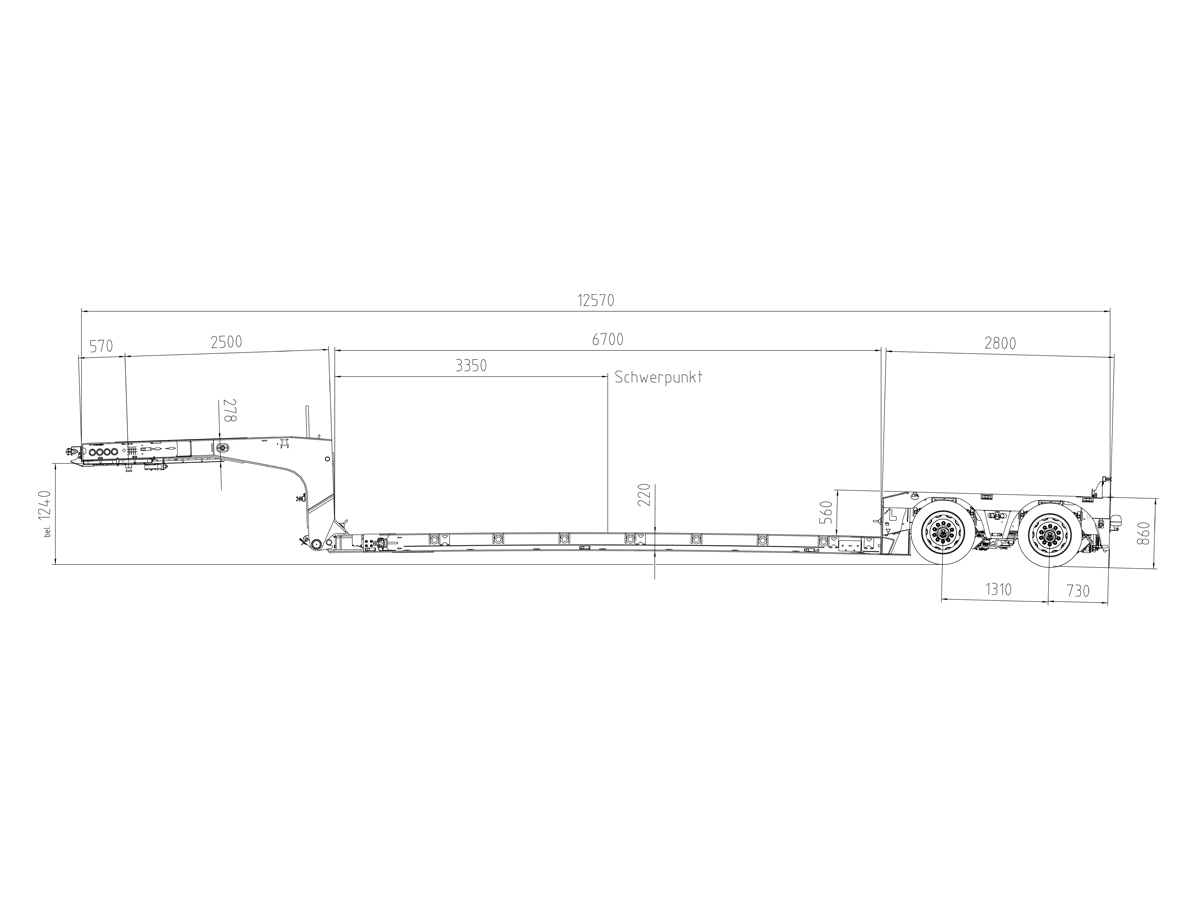

  • Overall length: 12.570 mm
  • Length of low-bed + telescoping: 6,700 + 5,700 mm
  • Vehicle width: 2.550 mm
  • Loading height (loaded): 300 mm
  • Wheelbase: 1,310 mm

Features

  • Retractable gooseneck for easy loading and unloading
  • User-friendly, smooth telescoping mechanism
  • High-quality three-layer coating
  • Powder-coated and hot-dip galvanised attachments

Equipment

Gooseneck of the DOLL drop-down bed X with ramp shelf and non-slip rungs

Added safety and ergonomics

All thanks to the optimised multi-connector, practical ramp storage area and slip-proof rungs on the gooseneck.

Lashing of loads with the market-leading load securing concept on the DOLL drop deck X

Perfect lashing

DOLL offers a market-leading load securing concept with numerous lashing points and stake pockets. And the handling? Simple and safe.

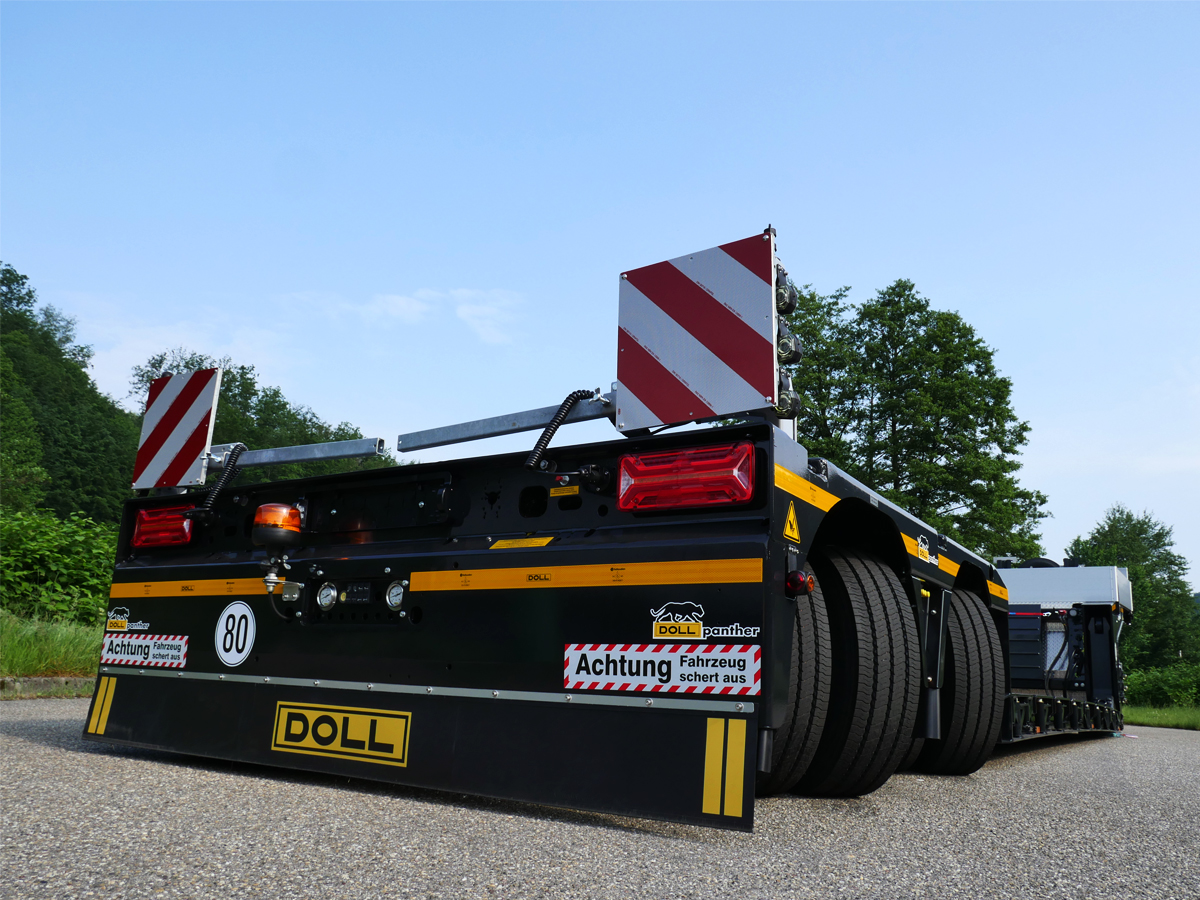

Full LED lighting at the rear

With dynamic indicators and flashing side marker lights for maximum safety on the roads.

Rear of the DOLL low-bed X semi-trailer with full LED lighting

Generous total stroke

Thanks to a chassis stroke of 315 mm (-70 mm/+245 mm), you benefit from maximum ground clearance.

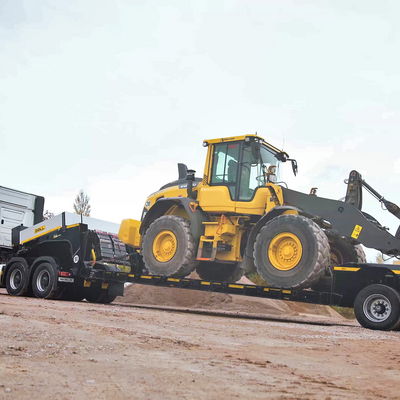

DOLL low-bed semi-trailer from the side, loaded with construction site vehicle, on sandy ground

Lowest loading height

We'll provide the ideal, lowest loading height for your particular area of application.

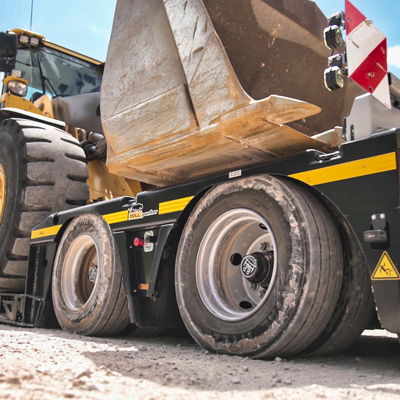

Rear of the DOLL low-loader semi-trailer, loaded with construction site vehicle with the lowest loading height

Interested?

Got questions about equipment, or need more information? Don’t hesitate to contact our expert vehicle advisers:

Telephone: +49 7804 49-530
E-mail: schwer@doll.eu

Vehicle request

Send us your request to receive a personalised offer for this vehicle.

Intelligent assistance and electronic control systems

DOLL tronic: your intelligent operating assistant

Tucked away behind the rugged keypad on the rear and the gooseneck of your vehicle is DOLL tronic – an intelligent operating and control system based on CAN bus technology. Featuring sophisticated sensor technology, it provides an easy-to-use, safe way of controlling the gooseneck, steering and driving level.

DOLL connect: it's in your hands

The DOLL connect trailer management system and intelligent radio remote control combines operation and monitoring abilities for all your low-loader functions.

DOLL EEP: on the right track

The EEP track adjustment system determines the correct steering angle for the axles. All you have to do is press a button on your radio remote control – and the vehicle automatically does the rest. Whether it's going in a straight line or round a bend.

Axle technologies of today and tomorrow

DOLL panther

The leading innovative axle technology with independent wheel suspension.
