Features + advantages

  • Designed to meet virtually all industry requirements
  • Reliable, payload-oriented design and weight-optimised steel structure
  • Outstanding manoeuvrability: hydraulic axle steering developed by DOLL
  • A choice of tried-and-tested axle technologies:
    and
  • EEP for fully automatic track adjustment
  • Built with high-quality components and well-known brand products
  • Series standard: the DOLL tronic® operating and control system
  • Even more convenience: the DOLL connect® intelligent assistance system
  • 7" color display DOLL control®



Vehicle enquiry

Request this vehicle now and receive an individual offer.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Check out our YouTube channel for more videos about DOLL vehicles, as well as our intelligent features and technologies.

Cargo types & sectors

  • Construction machinery
  • Construction site equipment
  • Machinery construction
  • Construction parts
  • Steel and concrete parts
  • Bridge components
  • Roof structures/composite lumber
  • Crane runways
  • Containers

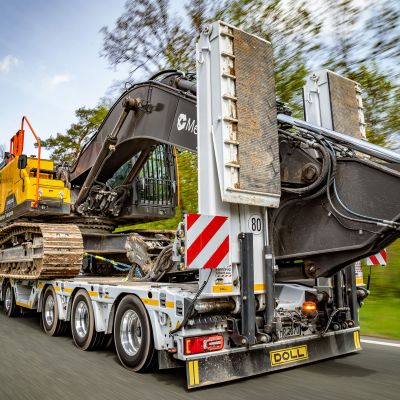

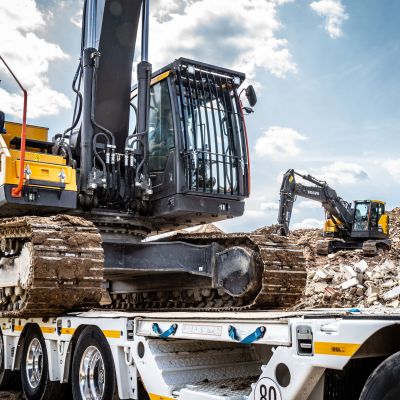

The ideal transport solution for the construction industry

Construction machinery is getting heavier and heavier and transport assignments ever more challenging. We're adapting to these requirements and building semi trailers that are especially designed for your day-to-day transport needs in the world of construction. So you can rest assured that your transport operations will be cost effective as well as being fully compliant with the applicable legislation.

  • Load floors reinforced and braced for drive-on operation of track and wheeled vehicles
  • Fully field-tested: high axial and point loads can be achieved
  • An extremely wide range of construction vehicles can be transported with just one vehicle type
  • Additional construction-specific features such as wheel recesses, wheel loader slopes and excavator boom recesses

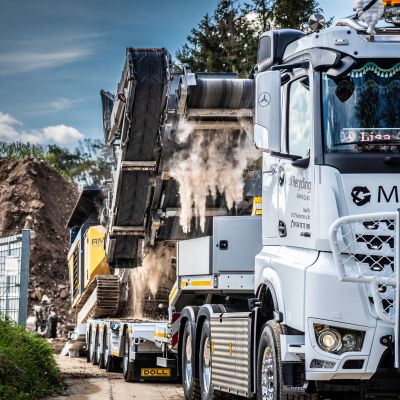

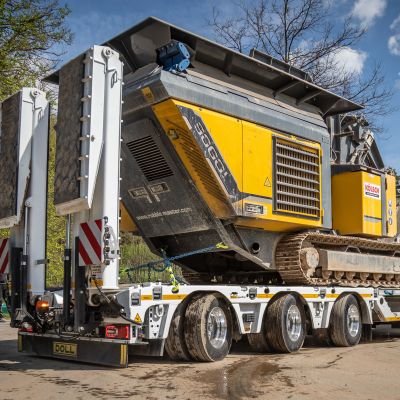

Vehicle details and equipment

Facts + components
  • From 2 to 5 axles
  • Gooseneck with an external or central main frame
  • User-friendly, smooth telescoping mechanism: extendable in individual stages
  • Low-bed can be customised with wheel and excavator recesses
  • A high-quality coating of your choice: two-layer paint finish or zinc spraying
  • A wide range of ramp options
  • Full LED lighting at rear
  • Powder-coated and hot-dip galvanised attachments

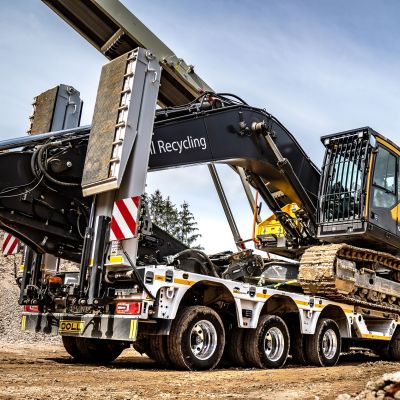

Lowest loading height: 780 mm

Together with a total stroke of 315 mm (-70 mm/+245 mm), you benefit from maximum ground clearance.

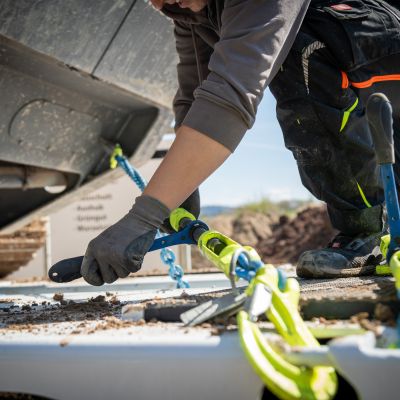

Perfect lashing

DOLL offers a market-leading load securing concept with numerous lashing points and stake pockets. And the handling? Simple and safe.

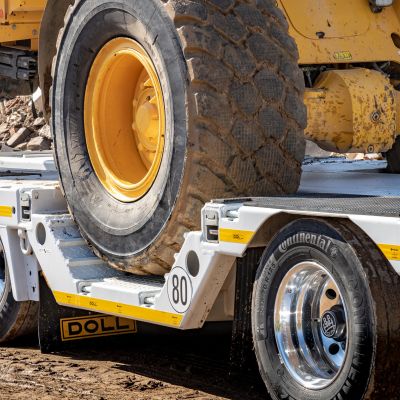

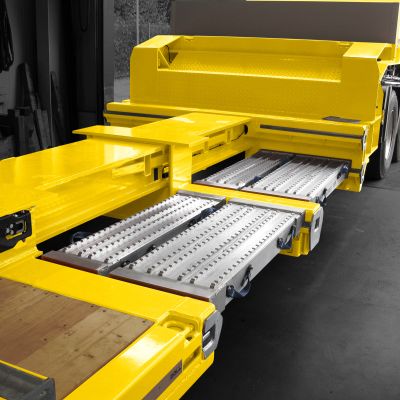

Wheel recesses and lowered driving surfaces

If you need to transport large pieces of machinery, you can win back the necessary metres you're missing for transport within the legal four-metre mark.

DOLL series production - Many vehicles. Same quality standards.

Assistance systems in heavy haulage

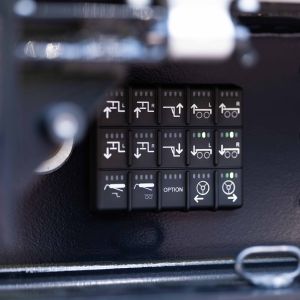

DOLL tronic®

Tucked away behind the rugged keypad on the rear and the gooseneck of your vehicle is DOLL tronic® - an intelligent operating and control system based on CAN bus technology.
Featuring sophisticated sensor technology, it provides an easy-to-use, safe way of controlling the gooseneck, steering and driving level.

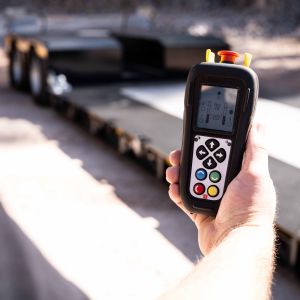

DOLL connect®

Operate the steering and ride height at the touch of a button without getting out? Track positions and error messages on a display at any time? The DOLL connect® trailer management system does all this and much more.

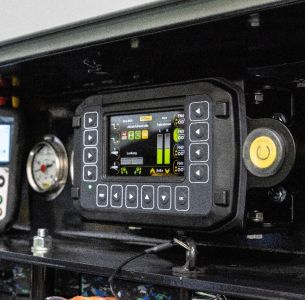

DOLL control®

Simple and clear display of all vehicle data, not only with symbols but also in plain text. The 7-inch DOLL control® color display is the epitome of user-friendliness and driver support.

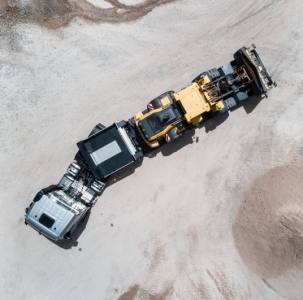

DOLL EEP

Put your vehicle back in the lane after steering? Just press a button on your DOLL connect® radio remote control. The rest happens automatically.

The proven CAN-BUS system for maximum overview and ease of use. Tested many times and optimized for everyday work.

Axle technologies designed to move you

DOLL panther®

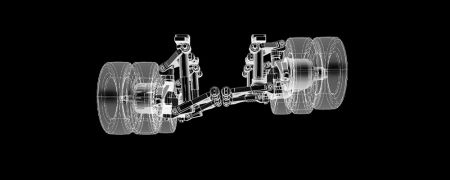

The leading, innovative axle technology with independent wheel suspension.

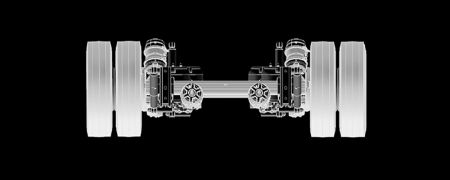

DOLL vario®

Stable, robust and incredibly strong. The DOLL vario® axle is one of the most durable in the world.

Technical data for the vario semi trailer

Dimensions
  • Deadweight: from 7,500 kg
  • Payload: up to 60,000 kg
  • Telescopic mechanism: single extension
  • Loading height: 880 mm
Axles and chassis
  • Number of axles: 2-5, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t drum brakes
  • Wheelbase: 1,360/1,810 mm
Attachments and accessories

Body & front wall

  • Front wall in various heights; straight or sloping design
  • Platform gates
  • Tarpaulin structure on the gooseneck

Load floor

  • Wooden floor made from spruce or hardwood
  • Sanded steel floor
  • Wheel and excavator recesses
  • Rubber floor

Load securing & storage concepts

  • A wide range of load securing options
  • Trestles
  • (Spindle-adjustable) stakes
  • Various tool and storage boxes
  • Combination lashing strips
  • Container locks
  • Stake storage area
  • Ramp storage area
  • Spare wheel holder

Accessories

  • DOLL tronic® operating and control system
  • DOLL connect® trailer management system
  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Reverse camera
  • Manoeuvring clutch
  • Lean-on ramps
  • Hydraulic single and double ramps
  • Various high-quality tyre and wheel combinations

Technical data for the panther® semi trailer

Dimensions
  • Deadweight: from 7,500 kg
  • Payload: up to 70,000 kg
  • Telescopic mechanism: single and double extension
  • Loading height: 850 mm
Axles and chassis
  • Number of axles: 2-5, hydraulically steered
  • Suspension: hydraulic suspension
  • Chassis: 12 t drum brakes
  • Lift axles
  • Wheelbase: 1,360/1,810 mm
Attachments and accessories

Body & front wall

  • Front wall in various heights; straight or sloping design
  • Platform gates
  • Tarpaulin structure on the gooseneck

Load floor

  • Wooden floor made from spruce or hardwood
  • Sanded steel floor
  • Rubber floor
  • Combination lashing strips
  • Container locks

Load securing & storage concepts

  • A wide range of load securing options
  • Trestles
  • Stakes
  • Various tool and storage boxes
  • Stake storage area behind front wall and toolbox

Accessories

  • DOLL tronic® operating and control system
  • DOLL connect® trailer management system
  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Reverse camera
  • Manoeuvring clutch
  • Lean-on and drive-on ramps
  • Spare wheel holder
  • Hydraulic single and double ramps
  • Various high-quality tyre and wheel combinations
