Features + advantages

  • Reliable, payload-oriented design
  • Weight-optimised steel structure
  • Low loading height
  • Robust, integrated load floor
  • Outstanding manoeuvrability: hydraulic axle or turntable steering developed by DOLL
  • Tried-and-tested DOLL vario axle technology with a 45° steering angle on the last axle
  • Built with high-quality components and well-known brand products

Vehicle request

Request this vehicle now and receive an individual offer.

“We already have seven DOLL platform semi-trailers in our fleet, and I think that alone speaks for itself. We love the rugged steel structure and the precise, hydraulic DOLL steering, which allows us to manoeuvre our platform semi-trailers easily around every bend and through every narrow passage.”

Christian Bachmeier, Managing Director of BC-Trans GmbH & Co. KG

Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

Cargo types & sectors

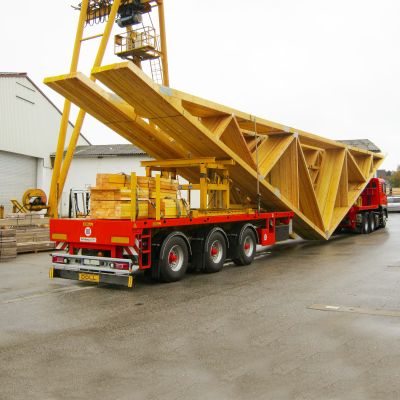

  • Construction parts (large and long)
  • Steel and concrete parts
  • Bridge and facade components
  • Roof structures/composite lumber
  • Crane runways
  • Containers
  • Wheeled vehicles, construction machinery, tractors

Vehicle details and equipment

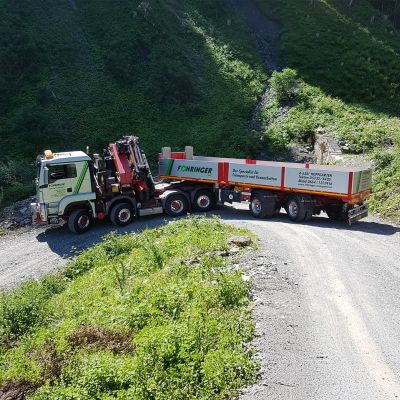

Manual oversteering

Thanks to the hydraulic steering system, you benefit from a steering angle of up to 45°. In a tight spot? The radio remote control allows you to adjust your steering easily whenever you need to.

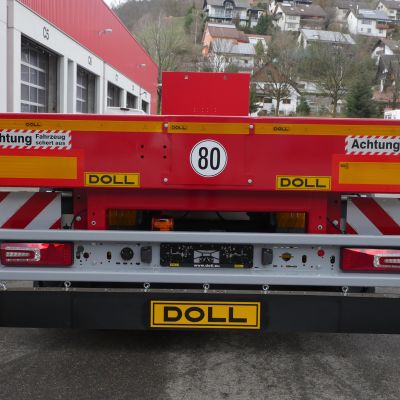

Full LED lighting at rear.

With dynamic indicators and flashing side marker lights for maximum safety on the roads.

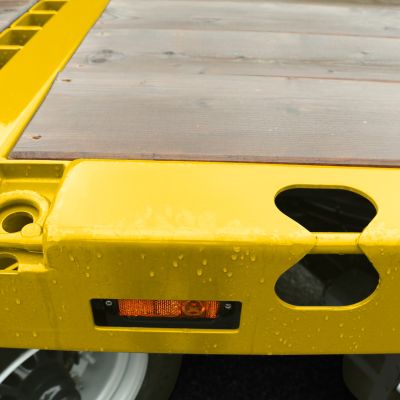

Perfect lashing

DOLL offers a market-leading load securing concept with numerous lashing points and stake pockets. And the handling? Simple and safe.

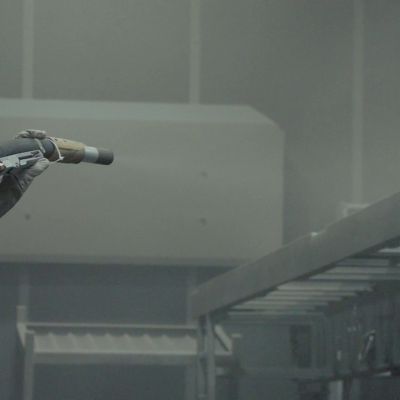

Corrosion protection. For decades.

On request, we also offer high-quality three-layer coating with zinc spraying.

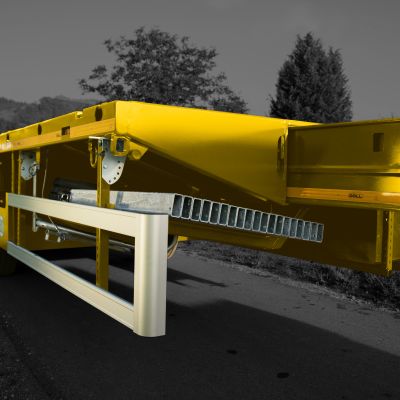

Practical storage concepts

Giving you a quick and easy way of stowing loose items such as lashing material and squared timber.

DOLL series production - Many vehicles. Same quality standards.

The DOLL platform semi-trailer is available in the following models:

The Basic model

Facts + features

  • From 2 to 4 axles

  • Universal vehicle for long, bulky and heavy goods

  • Hydraulic turntable steering

  • User-friendly, smooth telescoping mechanism with single and double extension

  • A high-quality coating of your choice: two-layer paint finish or zinc spraying

  • Powder-coated and hot-dip galvanised attachments
Technical data for the vario platform semi-trailer, Basic model
Dimensions
  • Payload: up to 60,000 kg
  • Telescopic mechanism: single and double extension
  • Loading height: 1,085 mm
Axles and chassis
  • Number of axles: 2-4, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t disc brake for single tyres, 12 t disc brake for twin tyres
  • Lift axle
  • Wheelbase: 1,810 mm
Body & front wall
  • Front wall in various heights;
  • Platform gates
  • Interior wear plate
Load floor
  • Wooden floor made from spruce or hardwood
  • Sanded steel floor
  • Rubber floor
Load securing & storage concepts
  • A wide range of load securing options
  • Spindle-adjustable stakes
  • Inclined braces
  • Combination lashing strips
  • Stakes
  • Container locks
  • Various tool and storage boxes
  • Squared timber storage areas
  • Stake storage area behind front wall and under load floor
Accessories
  • WABCO Smartboard
  • Additional steering via radio remote control
  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Reverse camera
  • Manoeuvring clutch
  • Access ladders
  • Spare wheel holder
  • Various high-quality tyre and wheel combinations

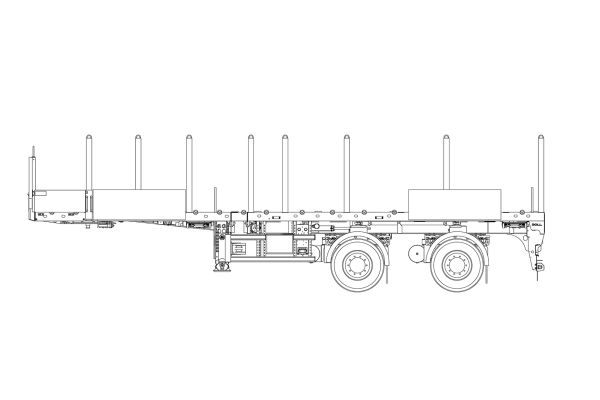

The Shorty model

Facts + features

  • From 1 to 2 axles

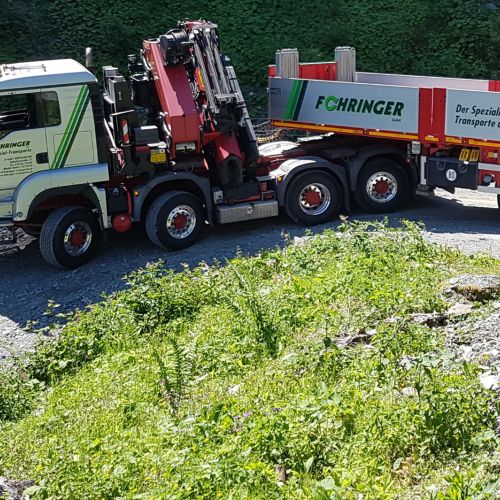

  • Perfect for narrow streets and access routes, high up in the mountains or in city centres

  • Hydraulic turntable steering

  • User-friendly, smooth telescoping mechanism with single extension

  • A high-quality coating of your choice: two-layer paint finish or zinc spraying

  • Powder-coated and hot-dip galvanised attachments
Technical data for the vario platform semi-trailer, Shorty model
Dimensions
  • Deadweight: from 6,500 kg
  • Payload: up to 30,000 kg
  • Telescopic mechanism: single extension
  • Loading height: 1,350 mm
Axles and chassis
  • Number of axles: 1-2, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t disc brake for single tyres, 12 t disc brake for twin tyres
  • Lift axle
  • Wheelbase: 1,810 mm
Body & front wall
  • Front wall in various heights
  • Platform gates
  • Interior wear plate for sliding bow roof
  • Platforms for occupational safety
Load floor
  • Wooden floor made from spruce or hardwood
  • Sanded steel floor
  • Rubber floor
Load securing & storage concepts
  • A wide range of load securing options
  • Combination lashing strips
  • Stakes
  • Cross supports
  • Various tool and storage boxes
  • Stake storage area behind front wall and under load floor
Accessories
  • WABCO Smartboard
  • Additional steering via radio remote control
  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Reverse camera
  • Manoeuvring clutch
  • Access ladders
  • Spare wheel holder
  • Various high-quality tyre and wheel combinations

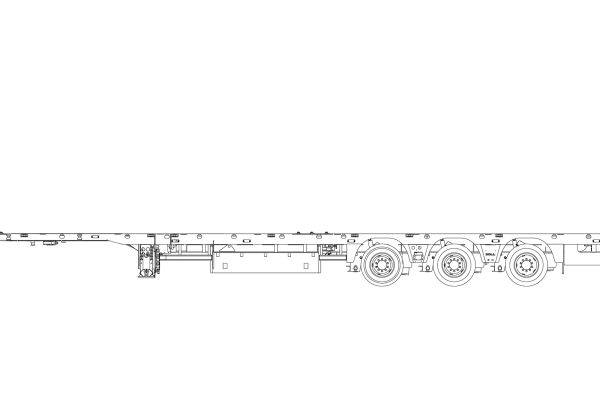

The Mega model

Facts + features

  • 3 axles

  • In addition to volume transports, this vehicle is also suitable for self-propelled loads such as wheeled vehicles, small construction machines and tractors

  • Hydraulic axle steering

  • User-friendly, smooth telescoping mechanism with single extension

  • A high-quality coating of your choice: two-layer paint finish or zinc spraying

  • Powder-coated and hot-dip galvanised attachments
Technical data for the vario platform semi-trailer, Mega model
Dimensions
  • Deadweight: from 9,000 kg
  • Payload: up to 45,000 kg
  • Telescopic mechanism: single extension
  • Loading height: 1,085 mm
Axles and chassis
  • Number of axles: 1-2, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 12 t drum brake for twin tyres
  • Lift axle
  • Wheelbase: 1,810 mm
Body & front wall
  • Front wall in various heights
  • Interior wear plate
Load floor
  • Hardwood floor with Omega rails
Load securing & storage concepts
  • A wide range of load securing options
  • Stakes
  • Container locks
  • Various tool and storage boxes
  • Squared timber storage areas
  • Stake storage area behind front wall and under load floor
  • Ramp storage area
Accessories
  • WABCO Smartboard
  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Reverse camera
  • Manoeuvring clutch
  • Spare wheel holder
  • Various high-quality tyre and wheel combinations
