Features + advantages

  • For long products up to 100 m in length and 85 t in weight
  • Reliable, payload-oriented design and weight-optimised steel structure
  • Built with high-quality components and well-known brand products
  • Simple and practical handling
  • Extremely agile: hydraulic turntable steering developed by DOLL
  • Extraordinary ground clearance and outstanding manoeuvrability
  • Hardly any changes to road infrastructure required


This vehicle is a rapid series model that is available at short notice.

“Transporting long materials is one of the most difficult challenges we face in heavy haulage. As an experienced logistics service provider, we make sure our customers in every sector get nothing but the best – so we chose DOLL’s trailer combinations because they contain the very best technology. DOLL’s precise hydraulic steering really makes a difference, particularly in situations where space is tight.”

Markus Frost, Managing Director at Universal Transport Michels GmbH & Co. KG

Vehicle request Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

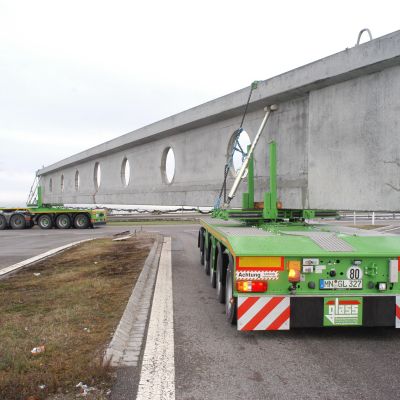

Used by Universal Transport

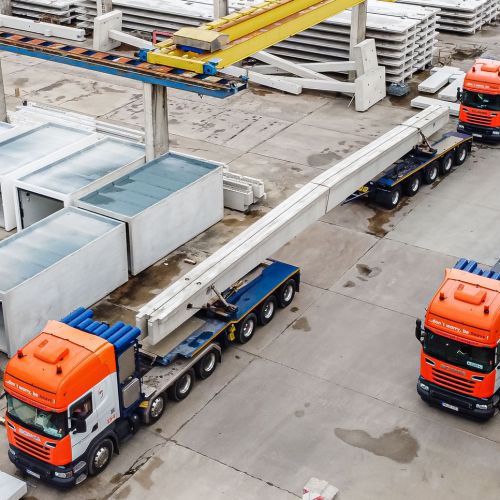

The reliable, scalable transport system for long products.

Cargo types & sectors

  • Structural components
  • Steel and concrete parts
  • Construction parts
  • Bridge components
  • Long products
  • Wind turbine components
  • Wind blades
  • Tower segments

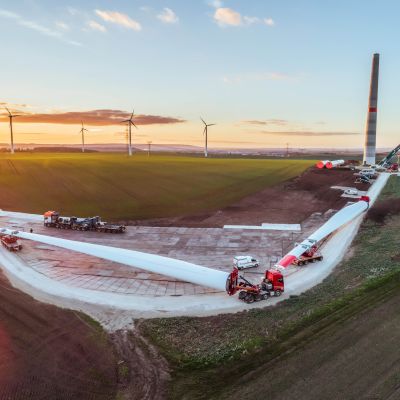

Wind blade transport 4.0. One system. For every type of wind blade. The DOLL wind blade transport system

In addition to classic long items, DOLL's self steering jeep dolly trailers are also perfectly equipped to transport wind blades. That's why we've combined our self steering jeep dolly trailer and lifting adapter to create the sturdy DOLL wind blade transport system. With interfaces for any wind blade up to 100 m in length and 35 t in weight, you won't just be equipped for the transport challenges of today – but also for those of tomorrow.

Vehicle details and equipment

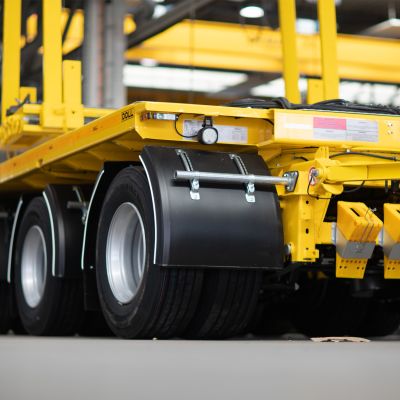

Facts + components
  • From 3 to 5 axles, can be extended with a jeep dolly with 2 to 4 axles
  • Various loading heights available
  • A high-quality coating of your choice: three-layer paint finish or zinc spraying
  • A market-leading load securing concept
  • Especially for concrete parts: spindle-adjustable stakes and inclined braces
  • Special bolster with a load of up to 60 t
  • Powder-coated and hot-dip galvanised attachments

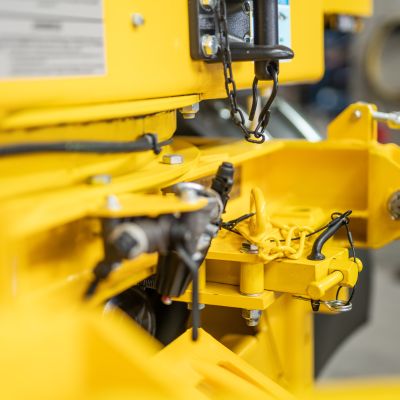

Variable loading

The steering radius adjustment for short and long bolster configurations allows you to respond flexibly to load length – while maintaining manoeuvrability.

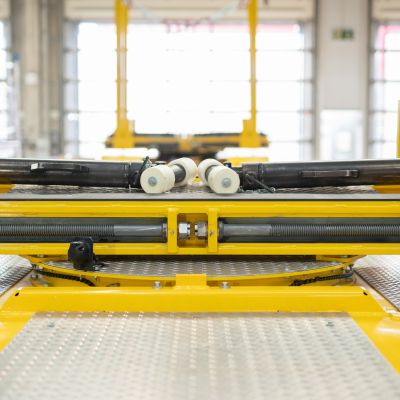

Better manoeuvrability

The special bolster with a steering angle of up to 85° gives you a huge amount of freedom – as well as the option to make right-angle turns.

Fuel-efficient empty trips

The vehicle can be driven as a drawbar trailer, which saves you time and money and reduces fuel consumption. In addition, empty trips do not require special approval.

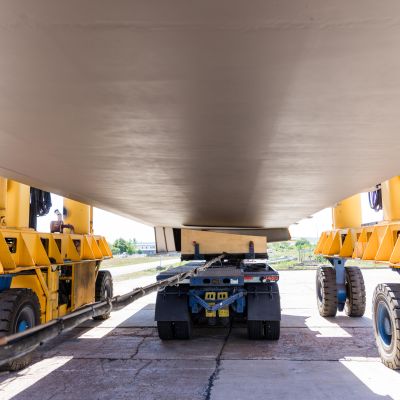

Perfect connections thanks to DOLL Powerboost

Easy-to-attach wire rope connections ensure efficient cable connection clamping. This ensures the battery is permanently charged – without any loss of voltage.

Manual oversteering

In a tight spot? The radio remote control allows you to adjust your steering easily whenever you need to.

Close-up of a hand holding a yellow-black remote control by DOLL for operating a heavy transport vehicle.
DOLL series production - Many vehicles. Same quality standards.

Pioneering steering technology

DOLL turntable steering

Your vehicle responds quickly and directly to the steering movements of the towing vehicle. Two independent hydraulic circuits guarantee complete reliability in any situation.

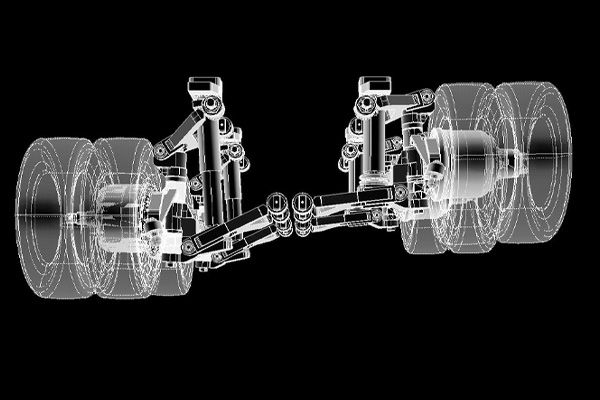

Market-leading axle technology

DOLL vario®

Stable, robust and incredibly strong. The DOLL vario® axle is one of the most durable in the world.

Technical data

Technical data for self steering jeep dolly trailer
Dimensions
  • Deadweight: from 6,500 kg
  • Payload: up to 50,000 kg
  • Loading height (loaded):
    • 1,380 mm (with R 17.5 tyres)
    • 1,460 mm (with R 19.5 tyres)
    • 1,620 mm (with R 22.5 tyres)
Axles and chassis
  • Number of axles: 3-5, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t or 12 t drum brakes
Attachments and accessories

Load securing & storage concepts

  • Stakes
  • Inclined braces
  • Tension chains
  • Screw-in attachment eyes
  • Aluminium covers over troughs

Accessories

  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Manoeuvring clutch
  • Charger and cable
  • Socket outlets
  • Various high-quality tyre and wheel combinations



Technical data for the jeep dolly
Dimensions
  • Deadweight: from 5,950 kg
  • Payload: up to 56,000 kg
  • Loading height (loaded): 1,730 mm (with 315/70 R 22.5 tyres)
Axles and chassis
  • Number of axles: 2-3
  • Suspension: pneumatic
  • Chassis: 10 t or 12 t drum brakes
Attachments and accessories

Load securing & storage concepts

  • Stakes
  • Inclined braces
  • Tension chains
  • Screw-in attachment eyes

Accessories

  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Manoeuvring clutch
  • Socket outlets
  • Tow bar
  • Various high-quality tyre and wheel combinations



Reliability in series: the DOLL rapid® vehicles, available for use at short notice

As well as our individual configuration options, we also offer the following vehicles as rapid series models. Or, to put it in concrete terms: in addition to a particularly short delivery time, you'll also benefit from fantastic discounted series prices.

4-axle rapid series models

4-axle vario self steering jeep dolly trailer N4S-0175

4-axle self steering jeep dolly trailer N4S-0175 with 17.5-inch tyres and vario axle technology.
