Features + advantages

  • Reliable, payload-oriented design and weight-optimised steel structure
  • Reinforced, drive-on forestry deck at the rear with grip bars
  • Lowest loading height
  • Lightweight flat bed or central main frame for maximum payload
  • Outstanding manoeuvrability: hydraulic axle steering developed by DOLL
  • Tried-and-tested axle technologies to choose from: DOLL panther and DOLL vario
  • EEP for fully automatic track adjustment
  • The DOLL tronic operating and control system
  • Even more convenience: the DOLL connect intelligent assistance system
  • 7" color display DOLL control




This vehicle can be configured to suit your individual needs and is also available as a rapid series model.
Vehicle request Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

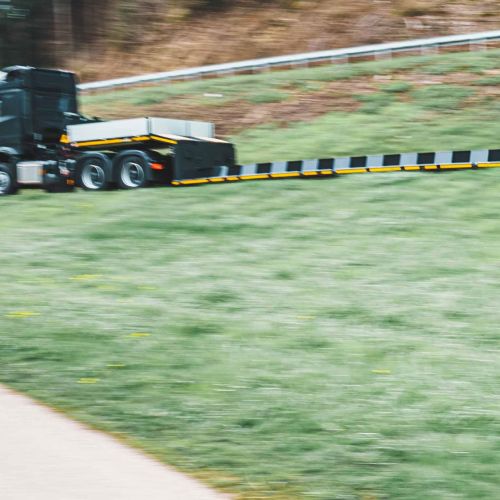

DOLL forestry lowbed X semi-trailer. Flexible use for your forestry machinery transport. Robust. Maneuverable. Intelligent.

Check out our YouTube channel for more videos about the DOLL low-loader X, as well as our intelligent features and technologies.

Vehicle details and equipment

Facts + components
  • 2 and 3 axles
  • User-friendly, smooth telescoping mechanism
  • Optional: retractable gooseneck for easy loading and unloading
  • A high-quality coating of your choice: two-layer paint finish or zinc spraying
  • Powder-coated and hot-dip galvanised attachments

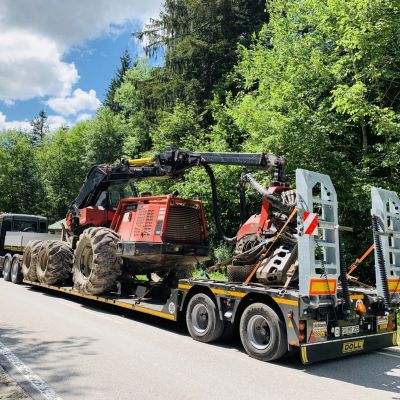

Designed for forestry machinery

Special grip bars and ramps make it easy to drive onto the low-bed and prevent the loads from sliding down.

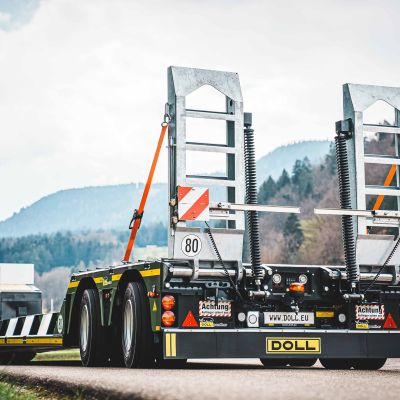

Gooseneck of the DOLL drop-down bed X with ramp shelf and non-slip rungs

Added safety and ergonomics

All thanks to the optimised multi-connector, practical ramp storage area and slip-proof rungs on the gooseneck.

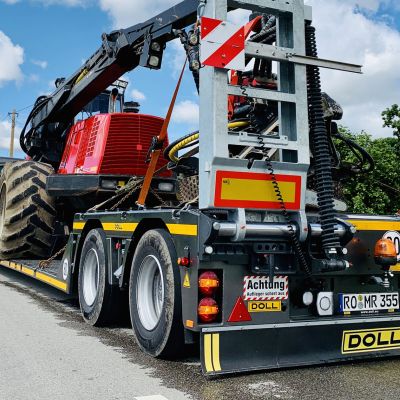

Lashing of loads with the market-leading load securing concept on the DOLL drop deck X

Perfect lashing

DOLL offers a market-leading load securing concept with numerous lashing points and stake pockets. And the handling? Simple and safe.

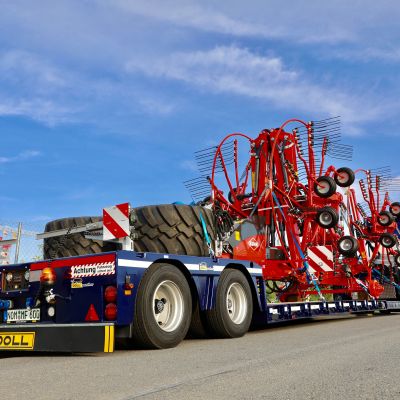

Full LED lighting at rear

With dynamic indicators and flashing side marker lights for maximum safety on the roads.

Rear of the DOLL low-bed X semi-trailer with full LED lighting

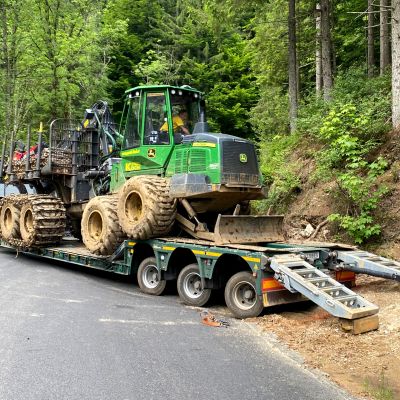

Generous total stroke

Thanks to a chassis stroke of 315 mm (-70 mm/+245 mm), you benefit from maximum ground clearance.

Heavy-duty tractor secured on a flatbed trailer for transportation through a forested road under a sunny sky.

The right model for every job

Whether you need a driving surface that is lowered at the side or a flat bed. A retractable gooseneck or a vehicle model that can be driven onto from behind.

Lowest loading height

We'll provide the ideal, lowest loading height for your particular area of application.

High-tech in the forest

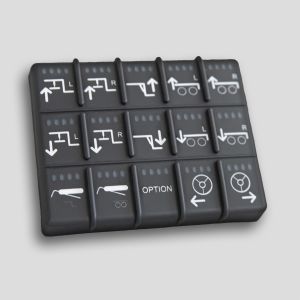

DOLL tronic

With the help of the DOLL tronic operating and control system, you can operate all the functions of your log and fifth wheel superstructure safely and easily.

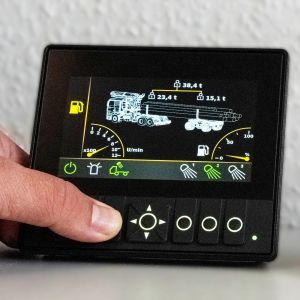

DOLL control

Clear display of all vehicle data with icons and in plain text. The DOLL control color display is the epitome of user-friendliness and driver support.

DOLL EEP + EEG

Do you want to retract your trailer after steering? Just press a button and the rest happens automatically.

Find out more about assistance systems in timber transport

You choose: DOLL tronic or the high-end version DOLL control for more functions and the intuitive control display. With the optional DOLL connect radio remote control, you stay in touch with the system of your choice and can also read out vehicle data remotely.

Axle technologies of today and tomorrow

DOLL panther

The leading, innovative axle technology with independent wheel suspension.

DOLL vario

Stable, robust and incredibly strong. The DOLL vario axle is one of the most durable in the world.

Technical data for forestry low-loader X vario

Dimensions
  • Deadweight: from 10,600 kg
  • Payload: up to 40,000 kg
  • Telescopic mechanism: single extension
  • Loading height: 200 mm
Axles and chassis
  • Number of axles: 2-3, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t or 12 t drum brakes
  • Wheelbase: 1,360 mm
Attachments and accessories

Body & front wall

  • Front wall in various heights; straight or sloping design
  • Platform gates
  • Tarpaulin structure on the gooseneck

Load floor

  • Wooden floor made from spruce or hardwood, removable floor segments
  • Sanded steel floor
  • Rubber floor
  • Combination lashing strips
  • Container locks

Load securing & storage concepts

  • A wide range of load securing options
  • Trestles
  • Stakes
  • Various tool and storage boxes
  • Stake storage area behind front wall and toolbox

Zubehör

  • WABCO Smartboard
  • Warntafeln
  • Heckmarkierungstafeln
  • LED-Arbeitsscheinwerfer
  • Rückfahrkamera
  • Rangierkupplung
  • Reserveradhalter
  • Anlege- und Auffahrrampen
  • Verschiedene hochwertige Reifen und Radkombinationen

Technical data for forestry low-loader X panther

Dimensions
  • Deadweight: from 10,600 kg
  • Payload: up to 40,000 kg
  • Telescopic mechanism: single extension
  • Loading height: 200 mm
Axles and chassis
  • Number of axles: 2-3, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t or 12 t drum brakes
  • Wheelbase: 1,310 mm (2-axles), 1,360 mm (3 axles)
Attachments and accessories

Body & front wall

  • Front wall in various heights; straight or sloping design
  • Platform gates
  • Tarpaulin structure on the gooseneck

Load floor

  • Wooden floor made from spruce or hardwood, removable floor segments
  • Sanded steel floor
  • Rubber floor
  • Combination lashing strips
  • Container locks

Load securing & storage concepts

  • A wide range of load securing options
  • Trestles
  • Stakes
  • Various tool and storage boxes
  • Stake storage area behind front wall and toolbox

Zubehör

  • WABCO Smartboard
  • Warntafeln
  • Heckmarkierungstafeln
  • LED-Arbeitsscheinwerfer
  • Rückfahrkamera
  • Rangierkupplung
  • Reserveradhalter
  • Anlege- und Auffahrrampen
  • Verschiedene hochwertige Reifen und Radkombinationen

Reliability in series: the DOLL rapid vehicles, available for use at short notice

As well as our individual configuration options, we also offer the following vehicles as rapid series models. Or, to put it in concrete terms: in addition to a particularly short delivery time, you'll also benefit from fantastic discounted series prices.

2-axle rapid series models

2-axle forestry low-loader vario T2H-0LZ18

2-axle forestry low-loader T2H-0LZ18 with vario axle technology.
2-axle forestry low-loader X panther T2E-S3FS21

2-axle forestry low-loader T2E-S3FS21 with panther axle technology.
