Retractable gooseneck

Hot-dip galvanized & stainless steel mounting parts

Smooth telescoping

High-quality fine-grained steel

High-quality coating

BECAUSE WE THINK AHEAD

Why DOLL NEXT Makes the Difference



SMART TECHNOLOGIES

Our innovative approach combines quality, performance, and cost efficiency at the highest level. The steadily growing demand for our low-bed semi-trailers drives the continuous advancement of state-of-the-art technologies in series production.


MODERN MANUFACTURING

In combination with our new, state-of-the-art facility in Hungary, we develop technically sophisticated and cost-efficient solutions that meet the demands of modern transport logistics.



DOLL NEXT – because your transport deserves nothing less than the best.

Types and Technical Specifications

2-axle DOLL tera

  • Overall length: 12,570 mm
  • Length (low bed + Telescoping): 6,800 mm + 5,700 mm
  • Vehicle width: 2,550 mm
  • Loading height (loaded): 300 mm

  • Chassis: 12-ton DOLL tera axle
  • Steering system: Hydraulic steering with 60° steering angle
  • Tires: 245/70 R 17.5" on steel rims
  • Wheelbase: 1,360 mm
  • Bucket: Continuous, internal width 700 mm

  • Gross weight: 45,000 kg
  • Payload: approx. 31,600 kg
  • Axle load: 24,000 kg

3-axle DOLL tera

  • Overall length: 14,930 mm
  • Length (low bed + Telescoping): 7,500 mm + 5,700 mm
  • Vehicle width: 2,550 mm / 2,750 mm
  • Loading height (loaded): 300 mm

  • Chassis: 12-ton DOLL tera axle
  • Steering system: Hydraulic steering with 60° steering angle
  • Tires: 245/70 R 17.5" on steel rims
  • Wheelbase: 1,360 mm / 1,510 mm
  • Bucket: Continuous, internal width 700 mm

  • Gross weight: 61,000 kg
  • Payload: approx. 44,500 kg
  • Axle load: 36,000 kg

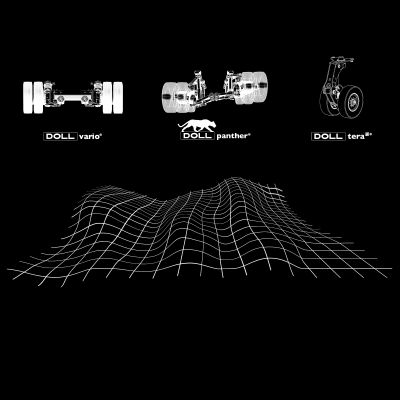

THE DOLL tera PENDLE AXLE

ROBUST. FIELD-TESTED. RELIABLE.

DOLL tera stands for maximum durability, precise directional stability, and exceptional load-bearing capacity in heavy haulage.
The axle technology delivers stability, traction, and performance—even under extreme conditions.

More information about DOLL tera

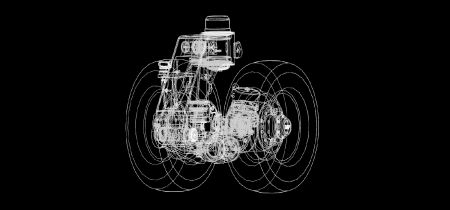

3D model in the style of a technical drawing of the DOLL tera axis technology

Digitalization in heavy haulage

A new level of user-friendliness.
Intelligently designed. Perfectly engineered.

Our intelligent electronic assistance systems simplify daily work routines through extensive sensor technology and innovative CAN bus technology. They automate complex tasks and make the operation of the vehicle and its key components easy. The epitome of user-friendliness and driver assistance. Maximum simplification of daily work routines.

DOLL tronic

With the DOLL tronic control system, you can safely and easily operate all the functions of your long-load and semi-trailer body.

DOLL connect

Want to control steering and driving level at the touch of a button without getting out of the cab? Want to monitor positions and error messages on a display at any time? The DOLL connect trailer management system does all this and much more.

DOLL control

A simple and clear display of all vehicle data, presented not only with icons but also in plain text. The 7-inch DOLL control color display is the epitome of user-friendliness and driver assistance.

DOLL EEP

Need to realign your vehicle after steering? Just press a button on your DOLL connect Radio remote control. The rest happens automatically.

Have you already made a decision, or do you have specific requirements for your flatbed trailer? Together, we’ll find the right solution for your transport needs.

Contact Us

PRECISION IN EVERY DETAIL

QUALITY THAT PAYS OFF.
The technical advantages of DOLL NEXT low-bed semi-trailers

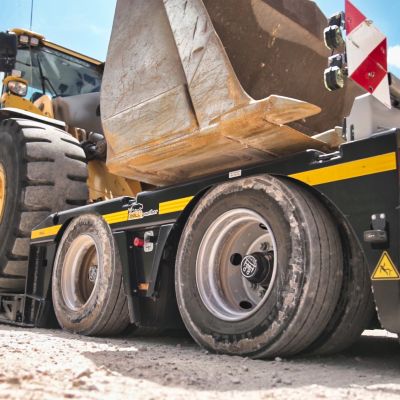

Agile & with directional stability

Thanks to DOLL hydraulic steering and modern axle technology, the trailer offers high maneuverability, precise Directional stability, and safe handling.

Close-up of the 7-inch DOLL control display on a vehicle

Consistently reliable

Electronics meeting the highest IP standards, mechanical components FEM-verified and tested – for maximum reliability and robust performance in heavy haulage.

Quality that lasts

High-quality components and brand-name products ensure reliable performance, high efficiency, and a long, cost-effective service life.

Long-lasting protection

Zinc spraying (metallization) and components with corrosion resistance provide comprehensive protection, maintain the appearance, and significantly extend the service life of the deep-bed in the long term.

Load securely fastened

Numerous tie-down points and stanchion pockets enable industry-leading load securing and easy handling—ensuring your cargo is securely fastened.

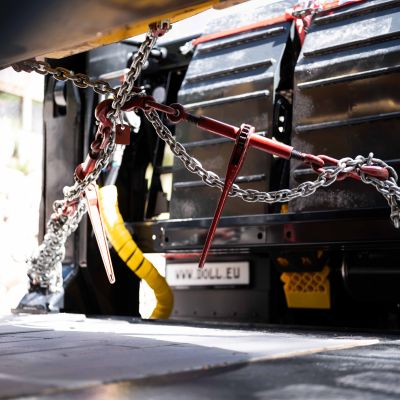

Lashing of loads with the market-leading load securing concept on the DOLL drop deck X

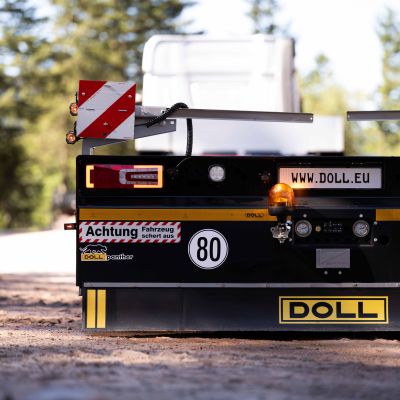

Visible and safe

Full LED lighting with dynamic turn signals and distinctive side marker lights ensures maximum road safety on the telescopic frame and at the rear.

Ergonomic & safe

Multiple handrails, intuitive cable routing, practical Ramp deposit, and a secure ascent enhance safety and comfort. The non-slip flooring improves traction.

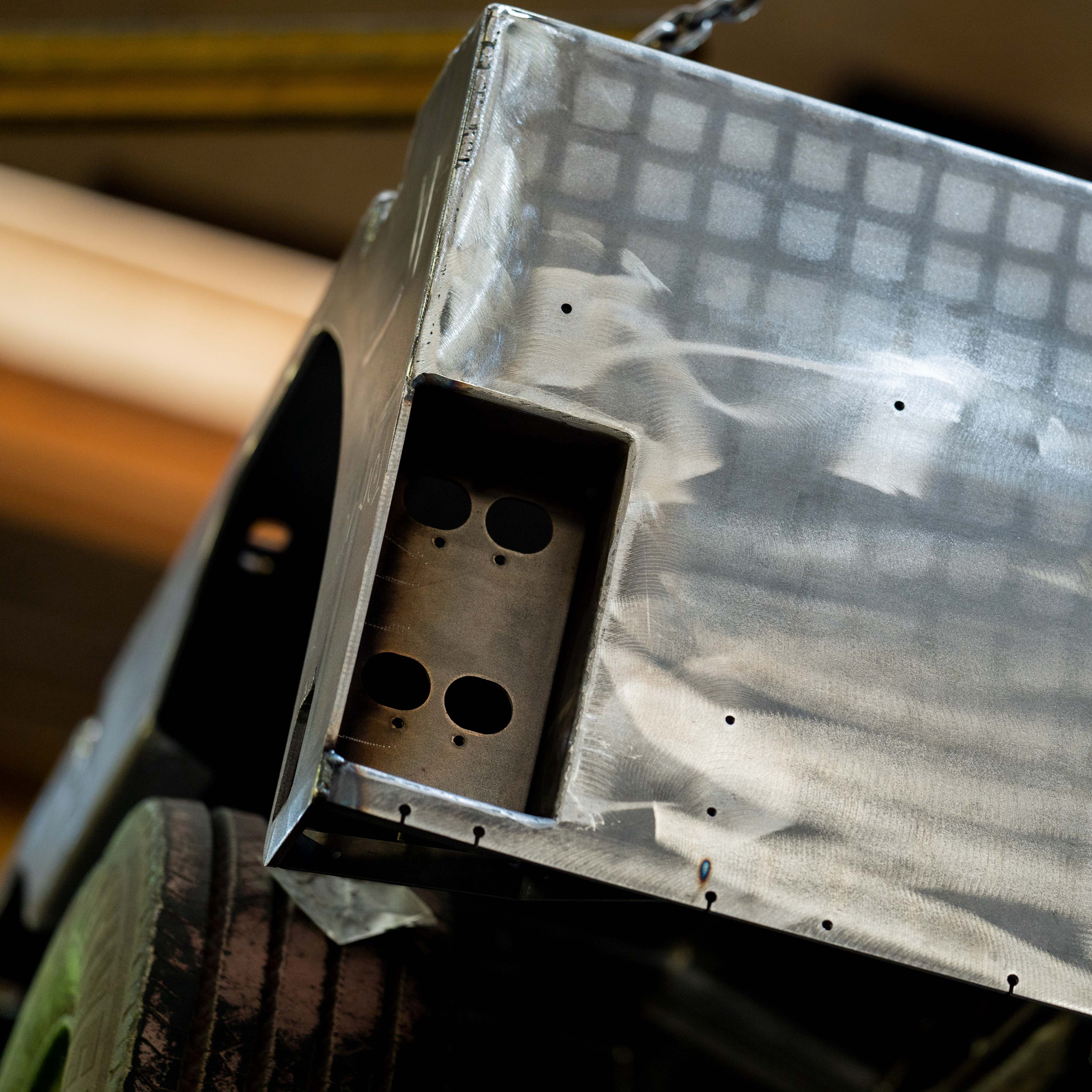

Less weight, more payload

Payload-oriented design and weight-optimized steel construction offer maximum load capacity with minimal dead weight—for efficient operations and high cost efficiency.

"We transport heavy loads throughout Europe. We now have six DOLL low-bed trailers in service and are fully equipped to handle any terrain and any job. When it comes to maneuverability, low ground clearance, safety, and reliability, DOLL vehicles set the standard."

Matthias Richter, Managing Director of Matthias Richter Transport

Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.
