Features + advantages

  • For wind blades of up to 120 m in length and 32 t in weight
  • Official approval for DOLL wind blade transport from all wind blade manufacturers: Nordex, Siemens Gamesa, GE, Vestas, Enercon, Suzlon interfaces and many more
  • Close cooperation with our partner HAWART
  • Use of high-quality components and renowned brand products
  • Field-proven trailer technology with DOLL's own hydraulic steering system
  • Exceptional ground clearance and excellent maneuverability
  • Sophisticated system for the lowest transport height on the market

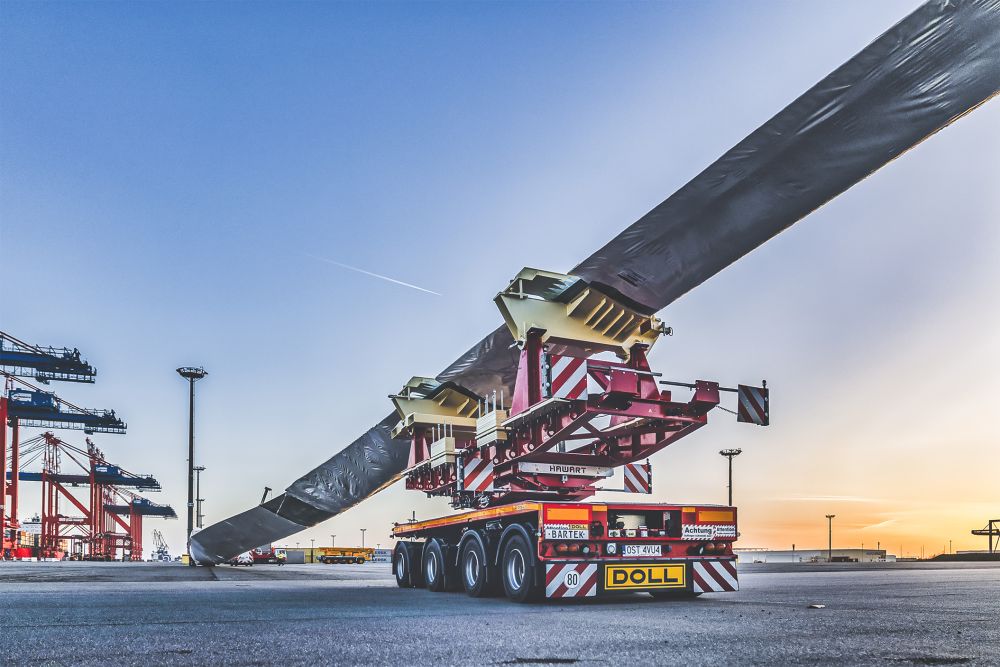

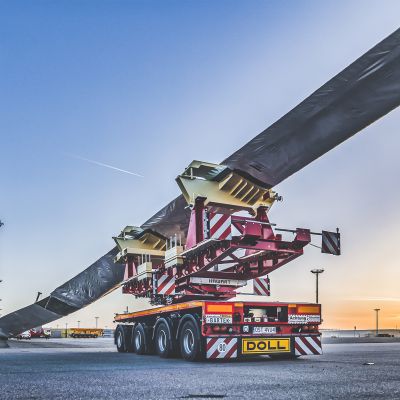

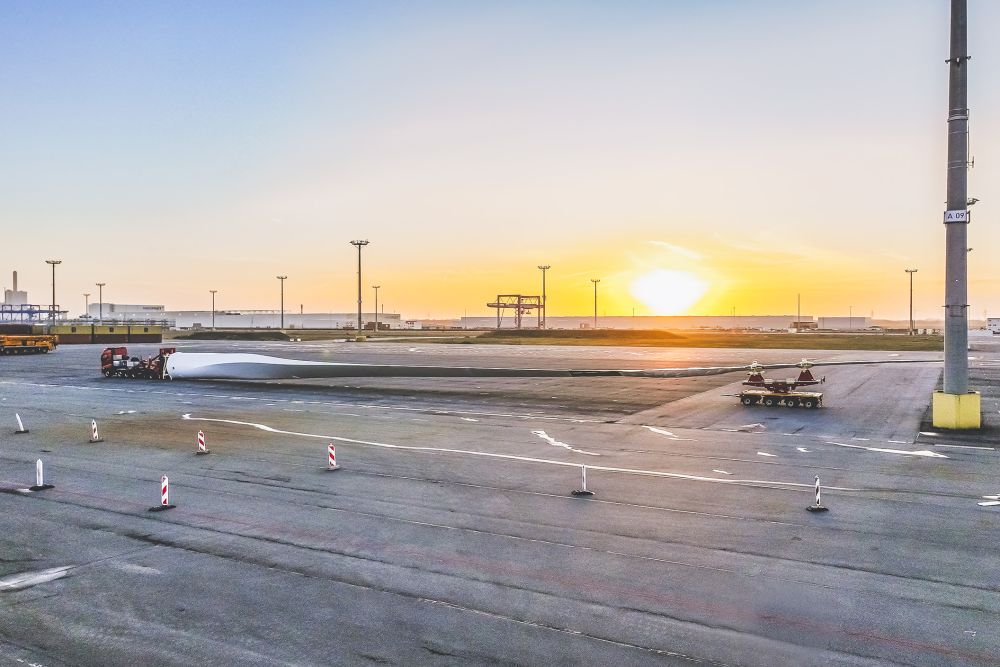

Heavy transport vehicle from DOLL for wind turbines at the port at sunset

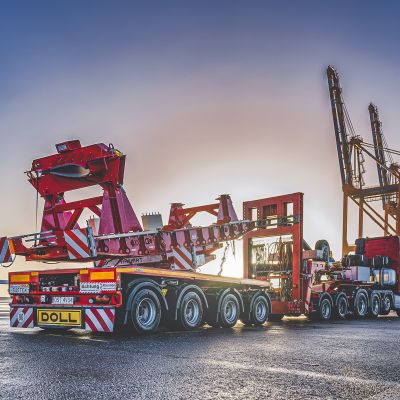

DOLL heavy transport vehicle for wind turbines at the harbor at sunset
  • High ground clearance simplifies your wind blade transport, increases efficiency and reduces the need for traffic control measures on the transport route
  • Ideal positioning of the power cables on the side of the blade to prevent damage
  • Safety Warning signals when steering is activated to prevent lateral force in the blade
  • Safety feature: Smart charging system maintains power supply to the battery in the trailer to ensure permanent operability of the trailer
  • Ergonomic positioning of the controls on the lifting adapter
  • Extraordinary rotating lifting adapter enables maximum flexibility of movement
  • DOLL wind blade transport systems guarantee fast, efficient loading and unloading
  • Lowest loading height of the trailer on the market

The self-steering trailer for the DOLL wind blade transport system is a rapid series model that is available at short notice.

“Using the innovative DOLL system allowed us to transport the longest rotor blades, something that simply wouldn't have been possible with standard trailer types. The total length of the combined vehicle was 87.5 metres.”

Joachim Wiesiollek, Managing Director of Transannaberg sp. z o. o.

Vehicle enquiry Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.
First successful test loading of the prototype wind blade Enercon E-175 EP5 carried out by DOLL

The rotor blade of the E-175 EP5 turbine is the longest that ENERCON has ever developed and produced. DOLL was the first manufacturer of wind blade transportation systems to successfully carry out the transportation of the new ENERCON wind blade.

Successful test run at Vestas

DOLL wind blade transport system proves itself during test loading and test run and is officially certified by Vestas.

Used by Rostock-Trans

DOLL wind blade transport system with mechanical lifting adapter.

Used by Transannaberg

DOLL wind blade transport system with hydraulic lifting adapter.

Vehicle details and equipment

Heavy transport of a wind blade on a specialized DOLL truck trailer on a country road.
Facts + components
  • Self-steering trailers with 4 and 5 axles, can be extended with a 2 axle dolly
  • Compatible with trucks from any manufacturer
  • Bolted rocker bearing with individual adjustment of the swivel radius
  • Hose package is stowed on the lifting adapter to save space when running empty
  • A high-quality coating of your choice: two-layer paint finish or spray galvanising
  • Lowest loading height of the trailer on the market
  • No additional adaptations necessary: Modular design of the interface on the lifting adapter facilitates installation of the wind blade
  • User-friendly attachment of the power unit: The unit is mounted transversely on the lifting adapter so that there is maximum space when the wind blade is rotated through
Close-up of a heavy transport with wind turbine mast, secured with a special red holder on a DOLL trailer.

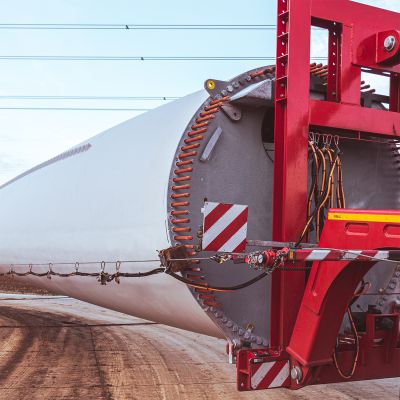

Perfectly linked with DOLL Powerboost

Convenient, time-saving and secure wiring along the side of the wind blade protects the load from damage caused by vibrations of the wire rope.

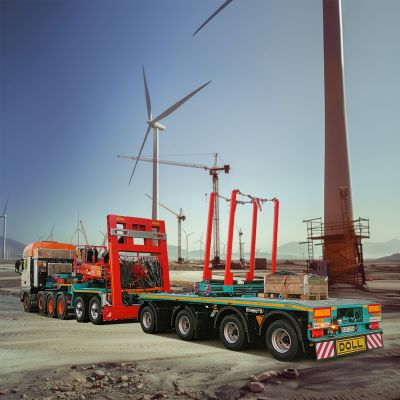

DOLL trailer combination with trailer for wind turbines during the construction of a wind farm with cranes in the background.

Low wear and tear when travelling empty

Driving as a drawbar trailer saves time, money and reduces your fuel consumption. In addition, empty driving is possible without a separate special permit. Coupling is simple and efficient, even on uneven ground.

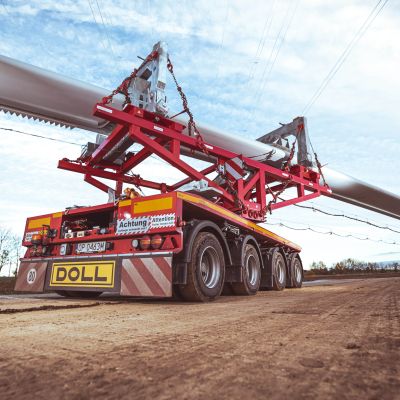

Field-tested self-steering trailer technology

A rotating attachment and variable overhangs give your trailer almost unlimited maneuverability. Even driving offset to the side (known as “crab steering”) is possible.

Manual oversteering

And if things do get tight? Then simply steer with the radio remote control at any time. You can also raise and lower the lifting adapter by remote control and rest it on the dolly when driving empty.

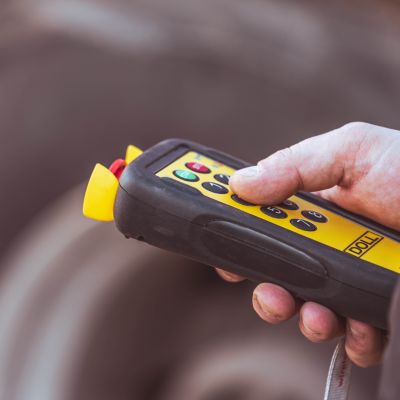

Close-up of a hand holding a yellow-black remote control by DOLL for operating a heavy transport vehicle.

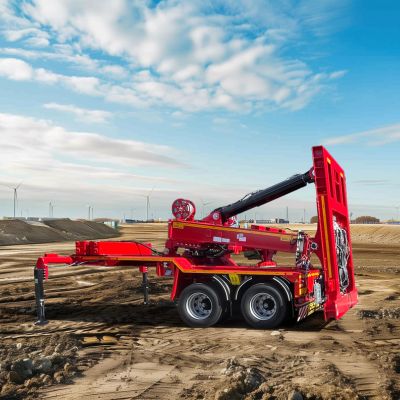

Red jeep dolly by DOLL at a wind turbine construction site with windmills and a crane in the background.

Option: Jeep dolly

This equips your system optimally for the future – and for even heavier blades. The lifting adapter is mounted directly on the dolly.

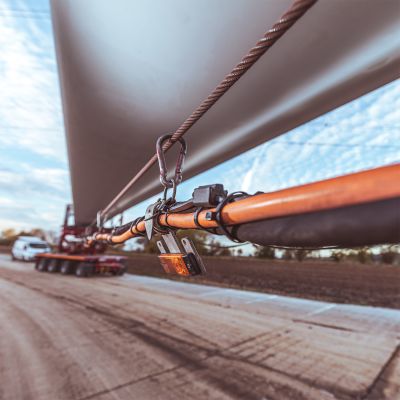

Close-up of the securing of a wind turbine blade with cables and carabiners on a DOLL heavy transport.

Smart battery charging system

The smart charging system with display via the app ensures that the battery in the trailer is charged and maintains the voltage. This means that the trailer remains operable and controllable even in emergency situations.

Unmatched low loading height

The trailer offers the lowest loading height of any transport system on the market.In combination with the low pendulum frame, you can make your wind blade transport easier and more efficient.

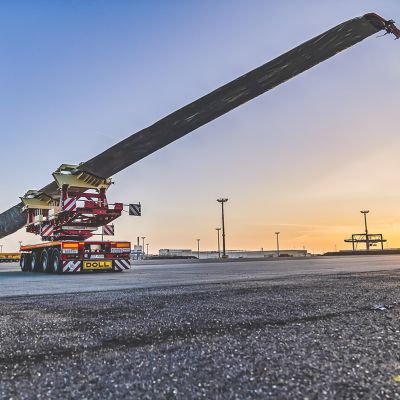

A DOLL heavy-duty trailer transports a wind turbine blade at a port site during sunset.

Modular adapter system

One adapter for every wind blade model. A special pattern of mounting holes in the adapter allows quick and easy attachment and replacement of the adapters.

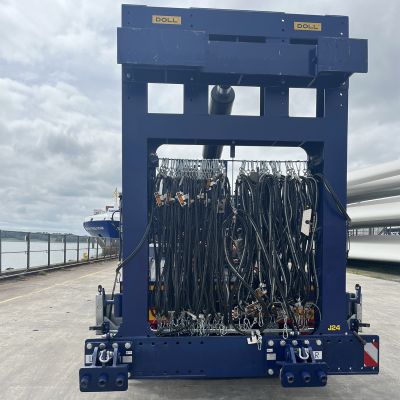

lose-up of a blue DOLL transport module with organized cables and carabiners at a port.

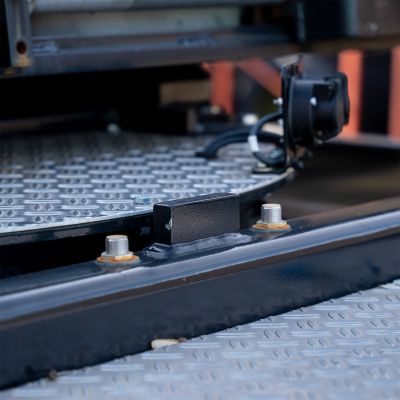

Close-up of a sensor and warning system on a DOLL heavy transport module with a metal platform and wiring.

Smart sensors

Increased safety thanks to earlier warning signals while steering prevents lateral forces in the blade. Visual warning 5° before reaching the end position to prevent damage to the wind blade.

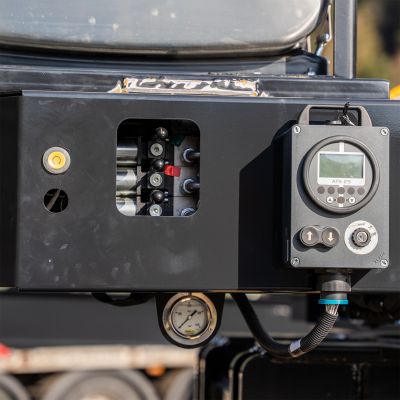

Close-up of a hydraulic and control system with a display and pressure gauge on a DOLL heavy transport module.

Easier operation and more convenience

The adapted positioning of the hydraulic levers on the lifting adapter makes operation easier and creates an ergonomic advantage compared to the previous model. All operating elements are only one arm's length away.

DOLL heavy transport vehicle for wind turbines at the harbor at sunset
Heavy transport vehicle from DOLL for wind turbines at the port at sunset

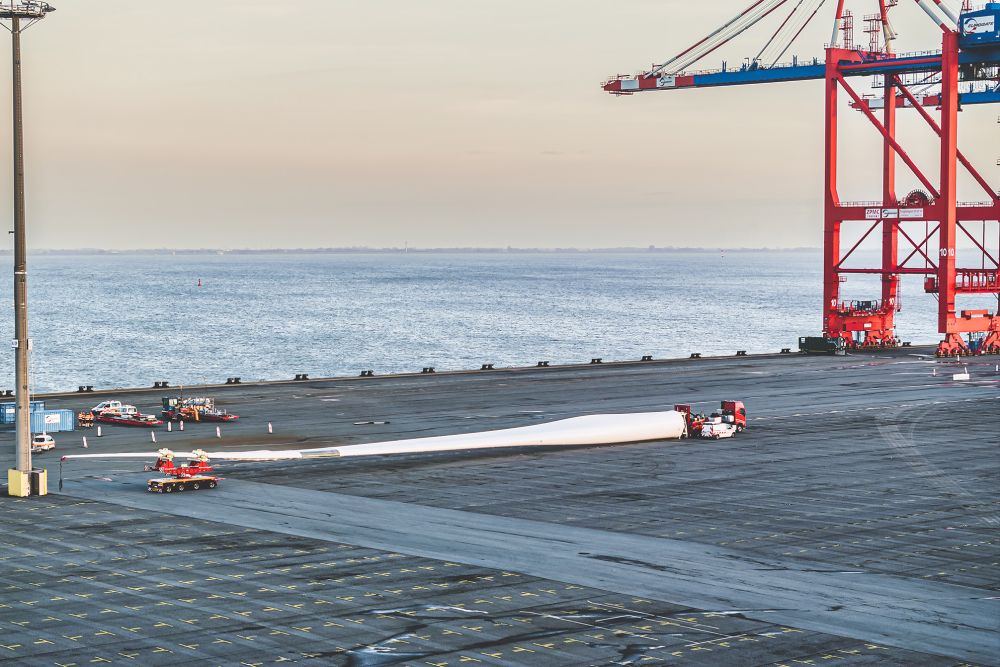

Transport of a wind turbine blade on a DOLL vehicle at sunset at the port

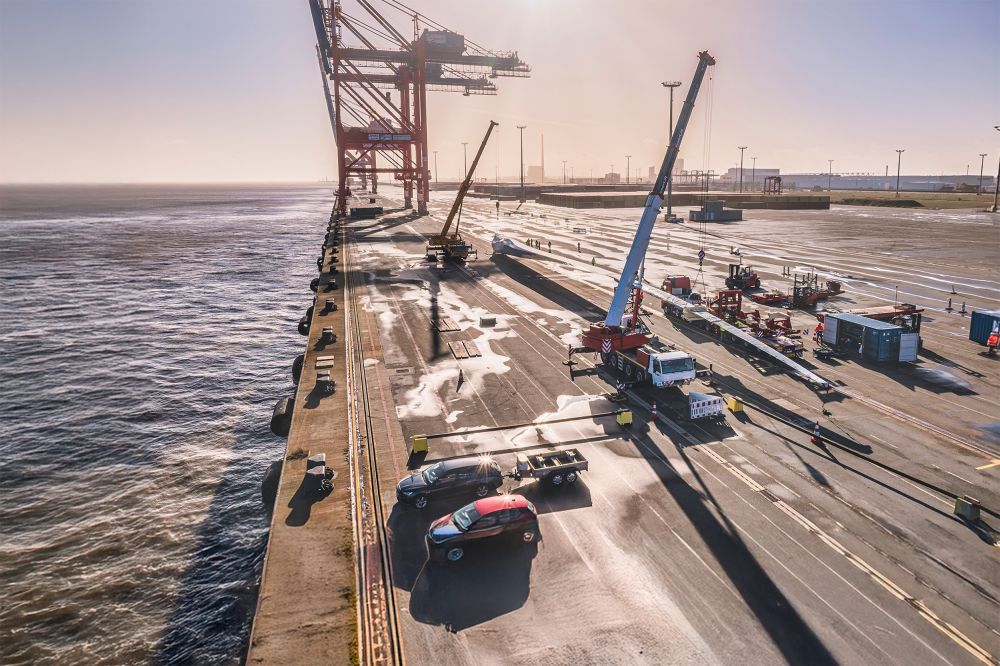

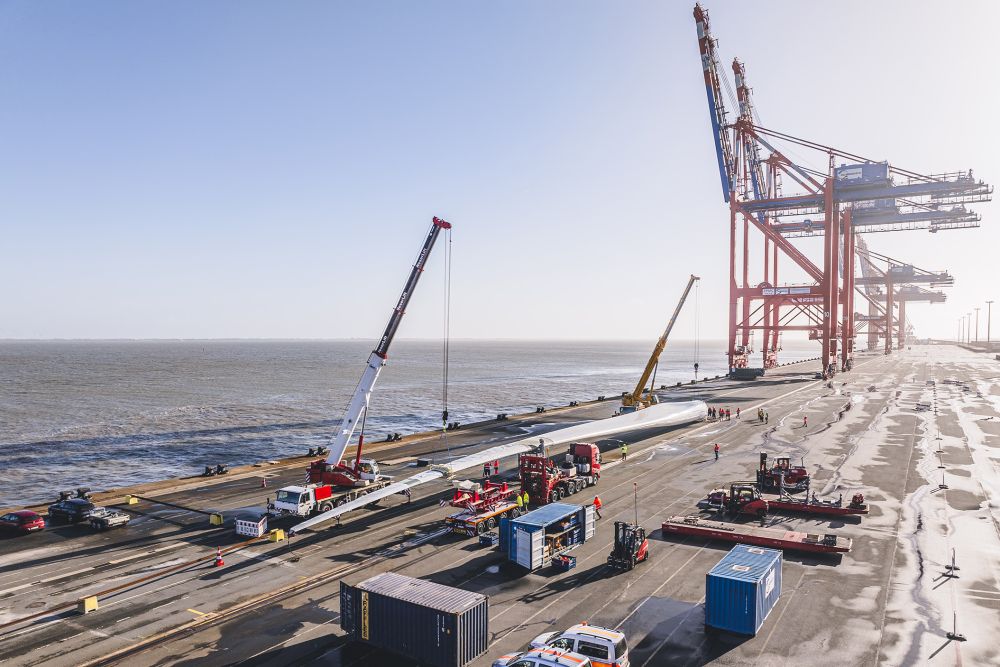

Heavy transport of wind turbine blades with cranes at the port at sunset

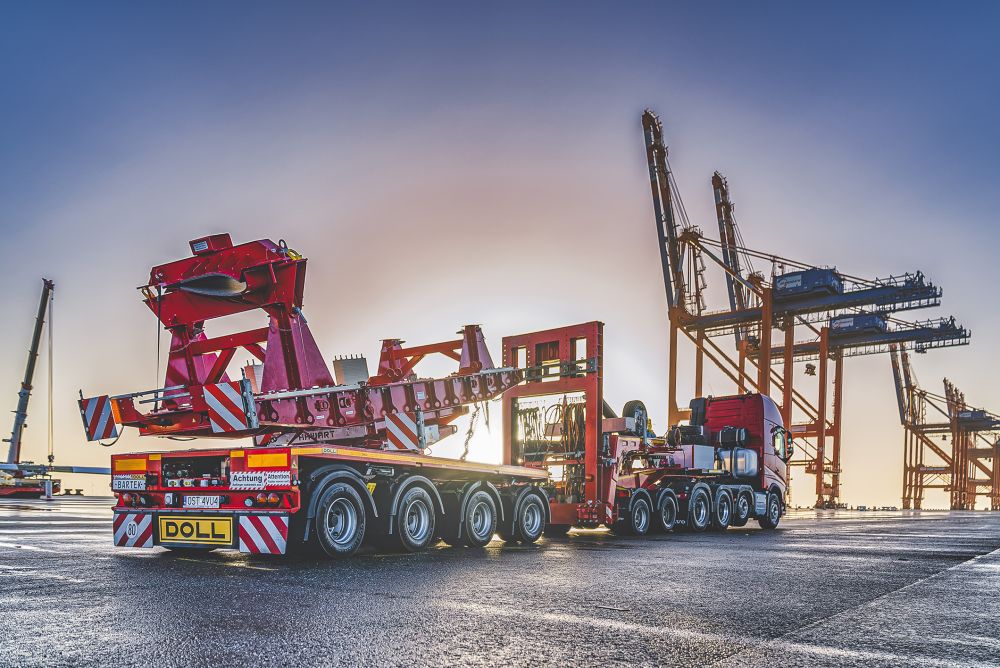

Heavy transport vehicle from DOLL for wind turbines at the port at sunrise
DOLL heavy transport vehicle for wind turbines at the harbor at sunset
DOLL heavy transport vehicle for wind turbines at the harbor at sunset

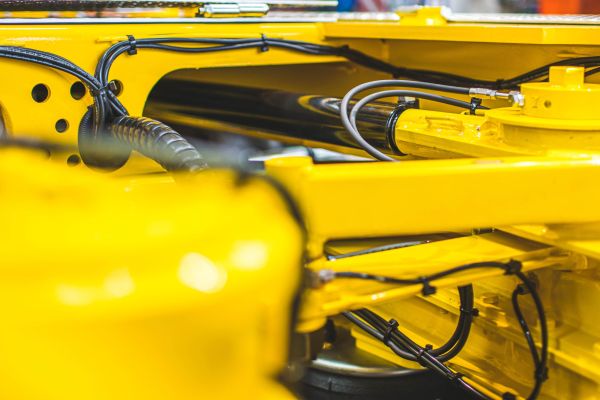

Pioneering steering technology

DOLL turntable steering

Your vehicle responds quickly and directly to the steering movements of the towing vehicle. Two independent hydraulic circuits guarantee complete reliability in any situation.

Market-leading axle technology

DOLL vario

Stable, robust and incredibly strong. The DOLL vario axle is one of the most durable in the world.

Technical data

Technical data for self-steering trailer
Dimensions
  • Deadweight: from 6,500 kg
  • Payload: up to 50,000 kg
  • Loading height (loaded):
    • 1,380 mm (with R 17.5 tyres)
    • 1,460 mm (with R 19.5 tyres)
    • 1,620 mm (with R 22.5 tyres)
Axles and chassis
  • Number of axles: 3-5, hydraulically steered
  • Suspension: pneumatic
  • Chassis: 10 t or 12 t drum brakes
Attachments and accessories

Load securing & storage concepts

  • Stakes
  • Inclined braces
  • Tension chains
  • Screw-in attachment eyes
  • Aluminium covers over troughs

Accessories

  • Warning signs
  • Rear marking plates
  • LED work lamps
  • Manoeuvring clutch
  • Charger and cable
  • Socket outlets
  • Various high-quality tyre and wheel combinations
Technical data for lifting adapter
Dimensions
  • Deadweight: 5,000 kg
  • Payload: 32,000 kg
  • Free swing radius:
    without dolly: 2400 mm
    with dolly: 3700 mm
  • Lifting height:
    without dolly: 1100 mm
    with dolly: 1800 mm



Reliability in series: the DOLL rapid vehicles, available for use at short notice

As well as our individual configuration options, we also offer the following vehicles as rapid series models. Or, to put it in concrete terms: in addition to a particularly short delivery time, you'll also benefit from fantastic discounted series prices.

4-axle rapid series models

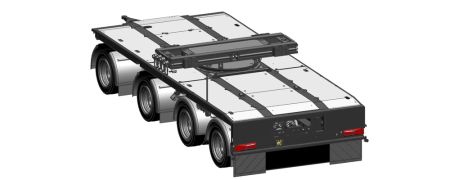

4-axle vario self-steering trailer N4S-0175

4-axle self-steering trailer N4S-0175 with 17.5-inch tyres and vario axle technology.
